Factory Lead Time

9 Weeks

Mount

Chassis Mount, Panel, Screw

Mounting Type

Chassis Mount

Number of Pins

4

Weight

0.075lb 34.02g

Power - Output (Max)

6W

Voltage-Output 1

21V

Voltage Rated

264V

Operating Temperature

-20°C~65°C

Series

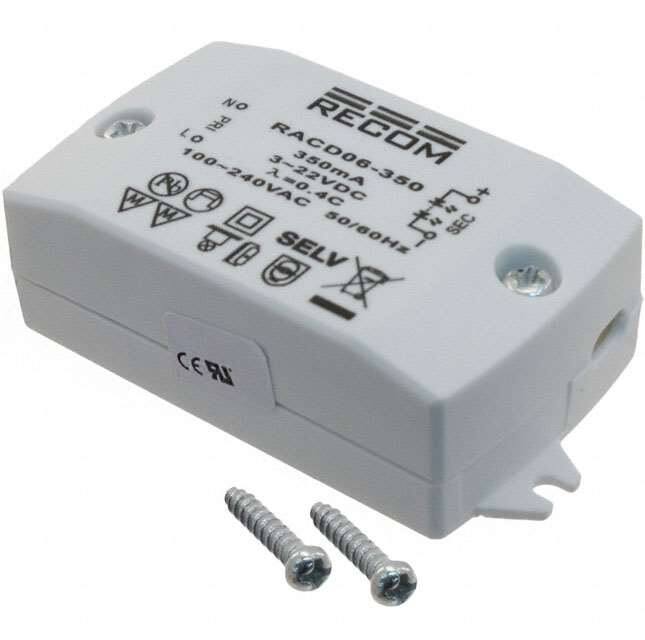

LIGHTLINE RACD06 (6W)

Size / Dimension

2.68Lx1.38W x 0.79 H 68.0mmx35.0mmx20.0mm

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

Termination

Terminal Block

ECCN Code

EAR99

Type

Constant Current

Max Power Dissipation

6W

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

20mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Termination Style

Screw Terminal

Number of Outputs

1

Approval Agency

CE, cULus

Efficiency

65%

Voltage - Isolation

3kV

Voltage - Input (Max)

264VAC

Max Output Current

350mA

Voltage - Input (Min)

90VAC

Input Voltage-Nom

115V

Trim/Adjustable Output

NO

Max Supply Voltage

264V

Min Supply Voltage

90V

Current - Output

350mA

Output Power

6W

Max Output Voltage

24V

Voltage - Output

3V~24V

Topology

AC DC Converter

Current - Output 1

350mA

Input Current

120mA

Number of Segments

12

Max Supply Voltage (AC)

264V

Min Supply Voltage (AC)

90V

Features

OCP, OTP, OVP, SCP

Height

21mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free

Ratings

IP20
